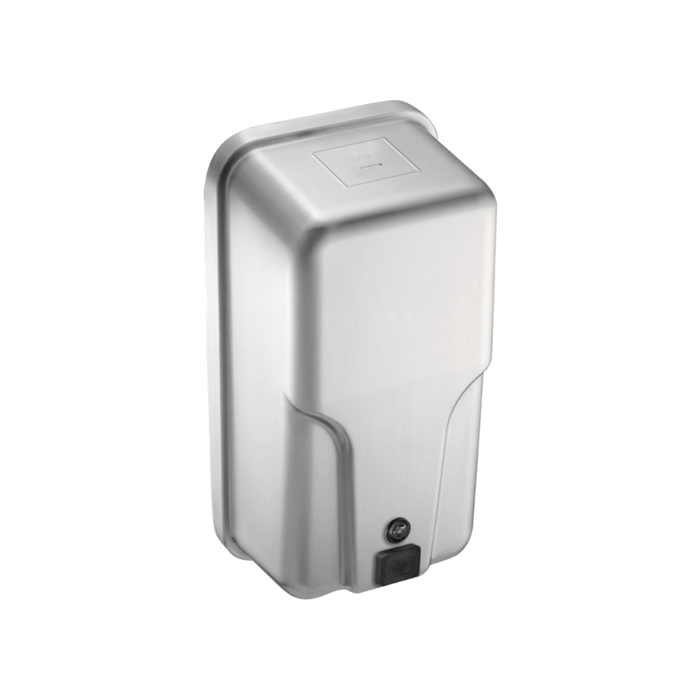

ASI - 10-20363 - Roval™ - Soap Dispenser - Liquid - Surface Mounted

Push button. Valve operation is ADA compliant, needing no more than 5 lbs. of pressure to actuate. Gently radiused edge complements the curves of the ASI Roval™ Collection.

Capacity: 57 oz. (1.7 L).

• Soap Requirements: Proper usage of this dispenser requires, that only liquid soap within the following range for viscosity and pH may be used.
• Viscosity Range (mPa·s or cP): 1 - 5.5k
• pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

Product Dimensions:

5-1⁄2" x 10-13⁄16" x 4"
139 x 274 x 101 mm

Spout Projection:

15⁄16" (24 mm)
