Overview:

PT1000 (10) 24 AWG Wires  Max. Rating: 24 VDC, 1A
PT200 (2) 18 AWG Wires Max. Rating: 24 VDC, 5A or 120 VAC NEC Class



  • Features:

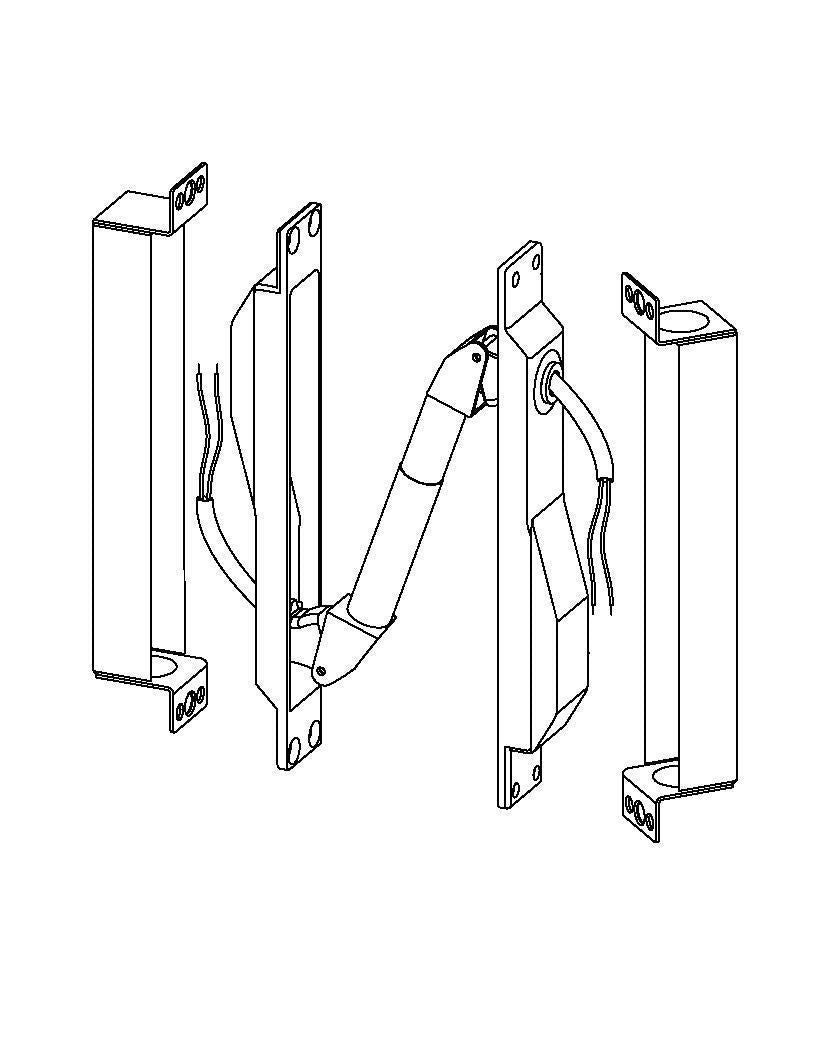

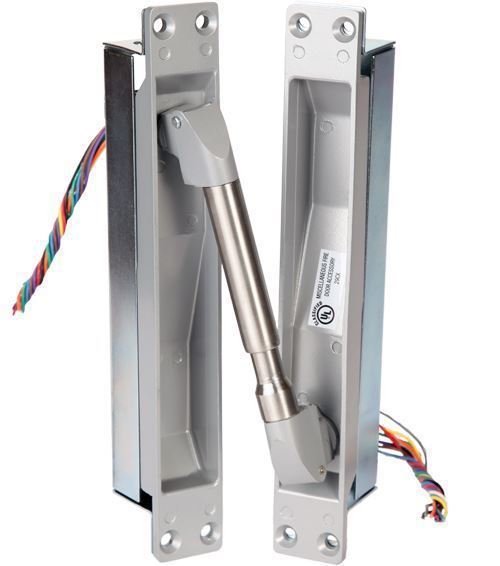

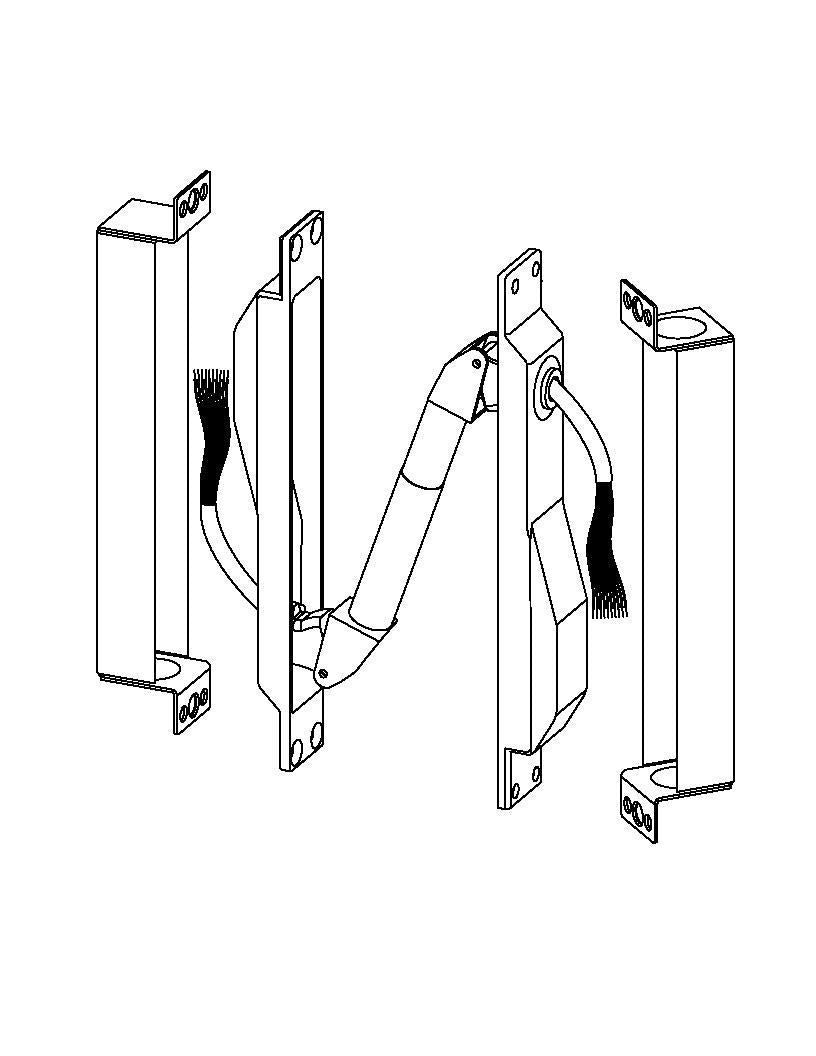

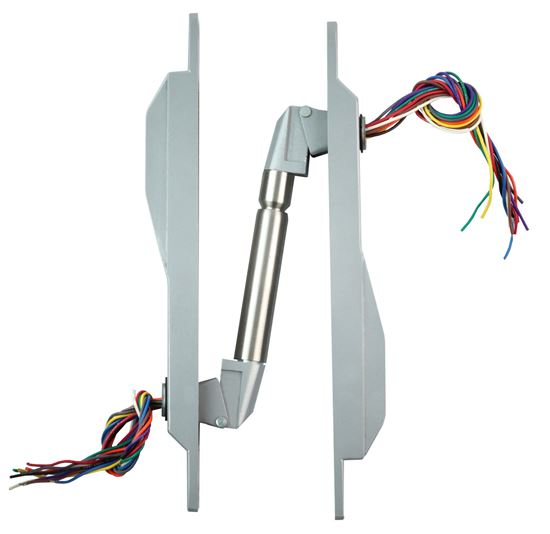

    • PT1000 & PT200 provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.

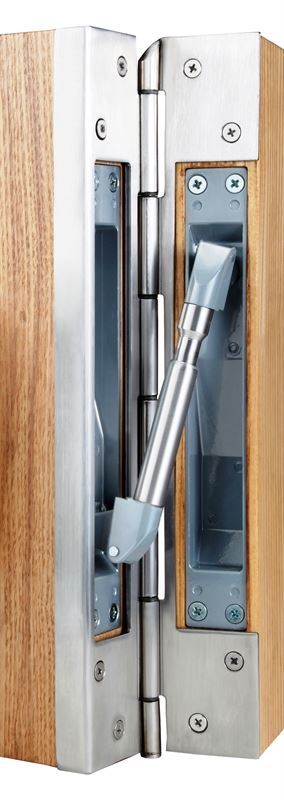

    • Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
    • All metal construction including backboxes - NO PLASTIC PARTS
    • Ideal for high abuse or heavy traffic situations
    • UL/ULC Listed for use on fire doors
    • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
    • Approximate shipping weight: 3 lbs.
    • Patent Pending
    • Matches competitor's door and frame prep

  • Standard Applications:
    • 1-3/4" Door thickness
    • Cam lift hinges (up to 1/2" lift) - allowing for 180° door swing
    • Butt hinges up to 5" - allowing for 180° door swing
    • 5-1/2" butt hinges - allowing for 130° door swing
    • 6" butt hinges - allowing for 110° doo swing
    • Up to 3/4" offset pivots allowing for 180° door swing
    • Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors
    • Average weight per unit = 2 lbs
