ABH LR6600 w/ Mortise Case Ligature-Resistant

ABH LR6600 w/ Mortise Case Ligature-Resistant

by ABH
From
$505.93

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure
Features:
  • Mortise lock body provided - specify function
  • New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
  • Mortise lock body only available in 2-3/4" backset
  • 4-7/8" ASA strike supplied standard
  • Mortise lock cylinder and cam not provided
    • Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
    • 6 Pin Cylinder = 1-1/8" long
    • 7 Pin Cylinder = 1-1/4" long
  • 1-3/4" standard door thickness (specify if greater than 1-3/4")
  • Meets ADA requirements
  • All mounting hardware goes through mortise lock body prep - no additional prep required
  • One continuous spring provides a smoother operation and an extended life for the unit
  • Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
  • Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
    • For ortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
  • Handles can be mounted up or down by simply rotating trim 180°
  • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
  • 3/4" Latch Bolt Throw
  • Average weight per unit = 10 lbs
  • Patents Pending




Options:
  •  "AM" Anti-Microbial Coating
  •  "L" Lead-Lined
  •  "PL" Entrance Only
  •  "PS" Exit Only
  •  "SEC" Fasteners
  •  "THICK" Special Door Thickness
  •  "EL" Electronically Locked
  •  "EU" Electronically Unlocked
  •  "RX" Request to Exit

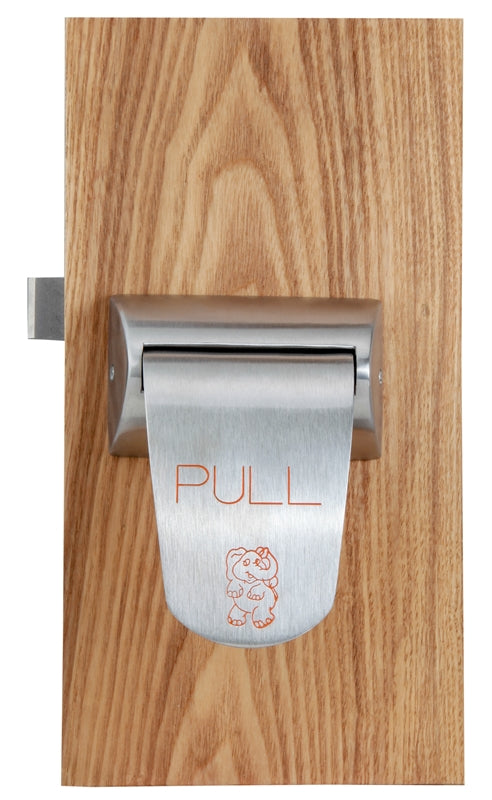

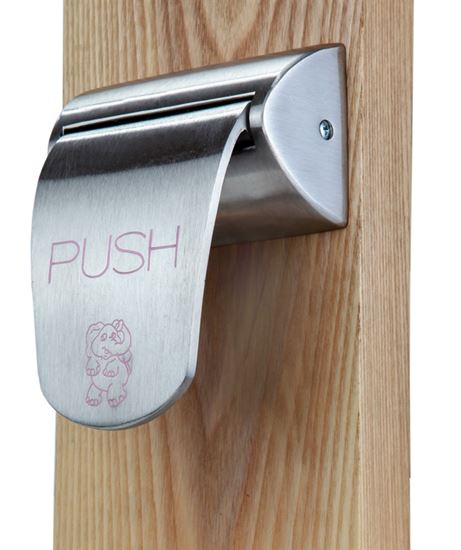

  •  "P" Engraved Handles "PUSH" or "PULL"
  •  "F" Flip-Up Handle for ligature-resistant on push side (LR6000, LR6600 & LR6700 only)
