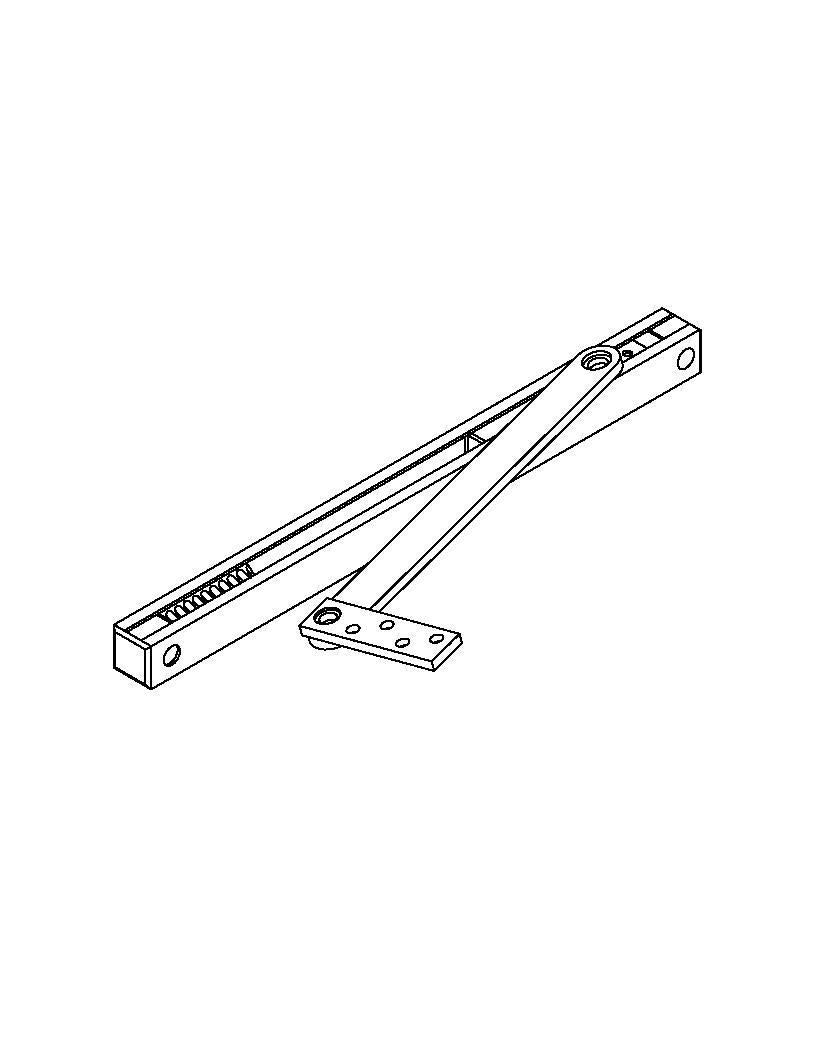

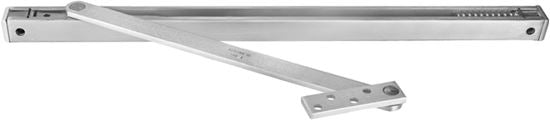

ABH 9000 Series - Surface Mount Overhead Stop & Holder

Features:

• Surface Mount
• Heavy Duty
• Stop, hold-open and friction functions available
• Single acting doors only
• Non-handed
• For interior or exterior use on frequent traffic and heavy weight doors
• Standard installation from 85° to 110° of opening (5° increments)
• Shock absorbing spring provides 3° to 5° cushion before dead-stop
• Standard fasteners supplied with sex bolts for 1-3/4" to 2-1/4"" thick door (see options for other door thickness)
• UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hurs (stop function only)
• Average weight per unit = 5 lbs
