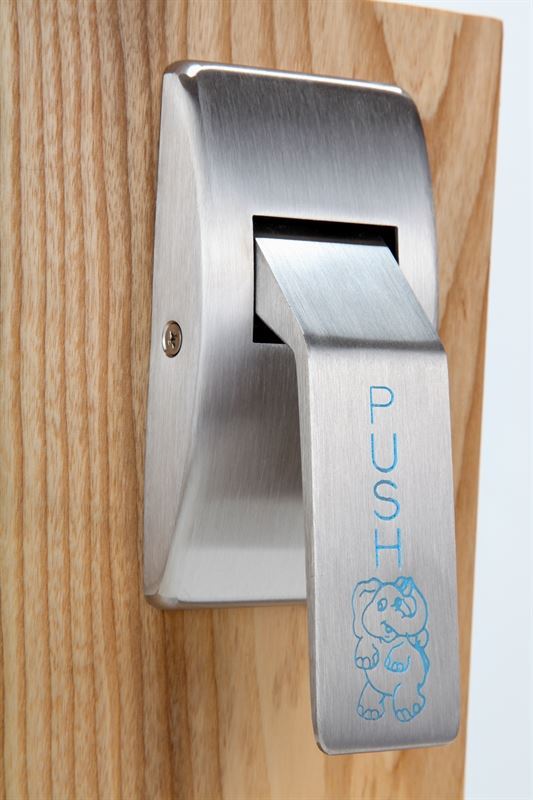

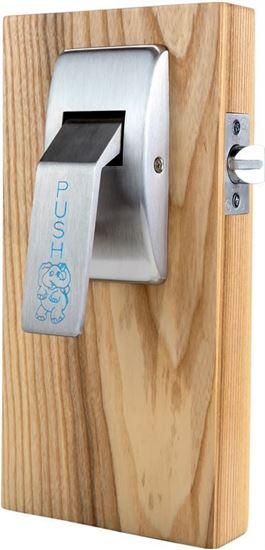

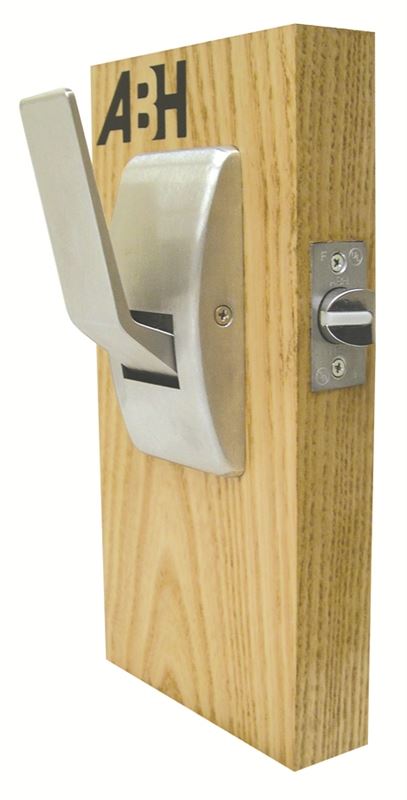

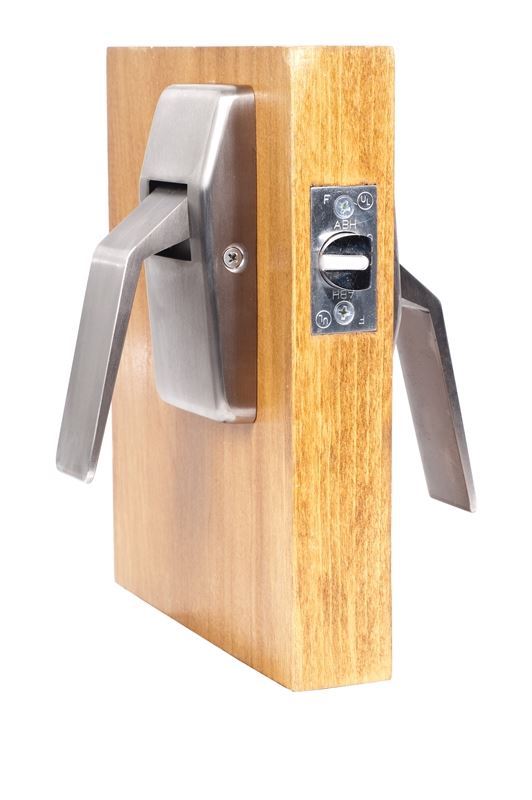

ABH 6800 Cylindrical Low Profile

by ABH
From
$138.95

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure
Features:
  • Cylindrical latch application - passage function
  • 1-3/4" standard door thickness (specify if different)
  • Meets ADA requirements
  • Trim is mounted using four thru-bolts for maximum stability
  • Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
  • Linear acting cam which provides for a smoother operating unit
  • One continuous spring provides a smoother operation and an extended life for the unit
  • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
  • 1/2" Latch Bolt Throw
  • Average weight per unit = 4.75 lbs
  • Patent# 7,258,374 & Addition Patents Pending
Options:
  •  "SEC" Fasteners
  •  "THICK" Special Door Thickness
  •  "L" Lead-Lined
  •  "AM" Anti-Microbial Coating
  •  "CN" Copper/Nickel Natural Anti-microbial metal alloy provided for handles and covers
  •  "RX" Request to Exit

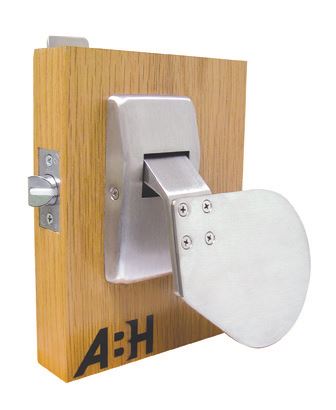

  •  "H" Hip Paddle
  •  "EX" Extended Handle
  •  "X" Slip-On Handle Extension
  •  "PL" Entrance Only
  •  "PS" Exit Only
  •  "M" Security Plate for Exit Only to Prevent Latch Tampering
  •  "FM" Flush Mount Asylum Trim (Cylindrical Latch only)
  •  "J" Junior Cover
  •  "RC" Round Cover
  •  "P" Engraved Handles "PUSH" or "PULL"

Downloads:

SUBSTITUTION REQUEST FORMS
