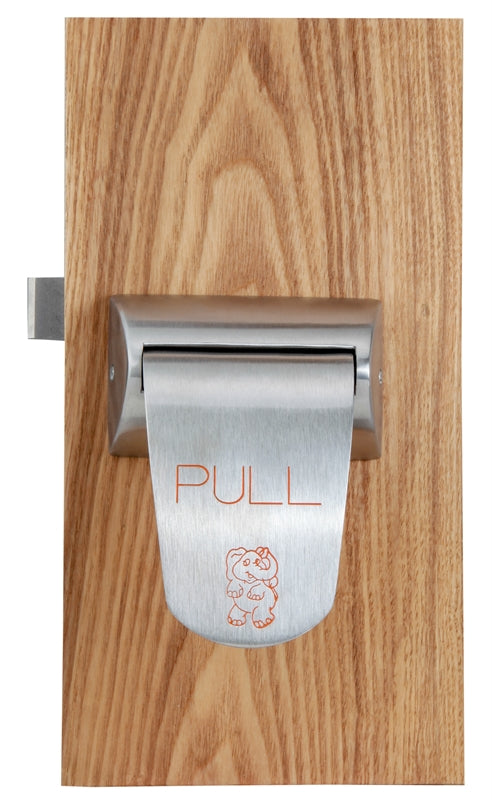

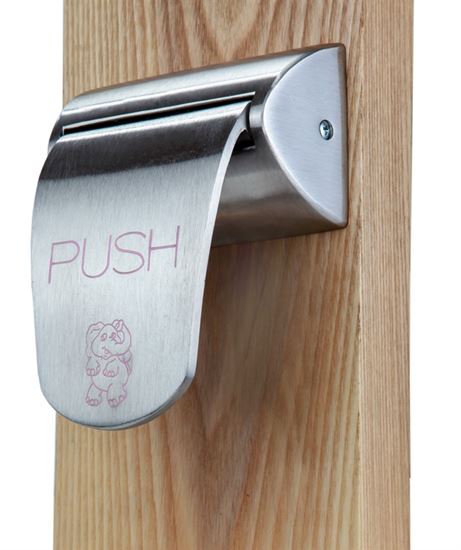

ABH 6600 Pull/Push Latch w/ Mortise Case

• Mortise lock body provided - specify function
• New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
• Mortise lock body only available in 2-3/4" backset
• 4-7/8" ASA strike supplied standard
• Mortise lock cylinder and cam not provided
  • Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
  • 6 Pin Cylinder = 1-1/8" long
  • 7 Pin Cylinder = 1-1/4" long
• 1-3/4" standard door thickness (specify if greater than 1-3/4")
• Meets ADA requirements
• All mounting hardware goes through mortise lock body prep - no additional prep required
• One continuous spring provides a smoother operation and an extended life for the unit
• Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
• Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
  • For ortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
• Handles can be mounted up or down by simply rotating trim 180°
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 3/4" Latch Bolt Throw
• Average weight per unit = 10 lbs
• Patents Pending
