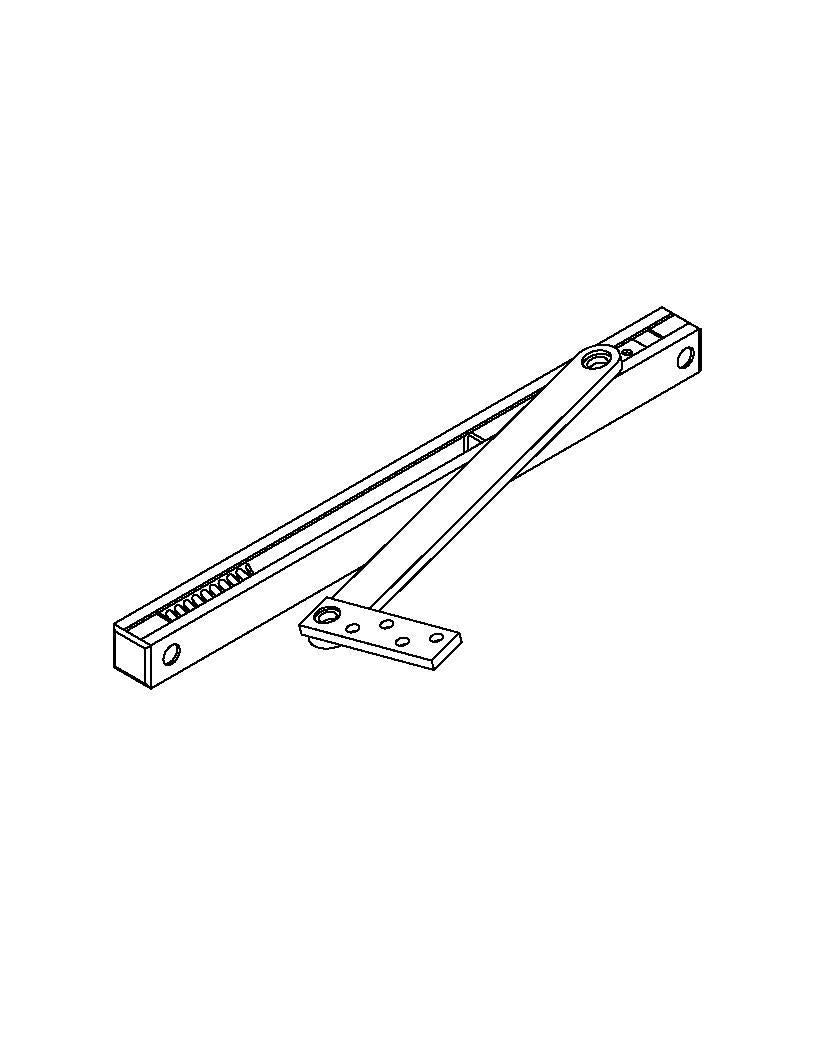

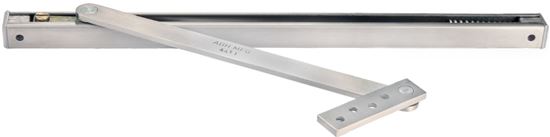

ABH 4400 Series - Overhead Stop & Holder, Medium Duty Surface Mount

ABH 4400 Series - Overhead Stop & Holder, Medium Duty Surface Mount

by ABH
From
$67.79

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure
Features:
  • Surface Mount
  • Medium Duty
  • Stop, hold-open and friction functions available
  • Single acting doors only
  • Non-handed
  • Standard installation from 85° to 110° of opening (5° increments)
  • Shock absorbing spring provides 3° to 5° cushion before dead-stop
  • Standard fasteners supplied with sex bolts for 1-3/4" to 1-7/8" thick door (see options for other door thickness)
  • UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only)
  • Average weight per unit = 2 lbs



Options:
  •  "N" All Stainless Steel (non-ferrous) components for wet environments to prevent corrosion
  •  "44443" Angle Jamb Bracket for 3300A & 4400 Series (Specify Finish)
  •  "CL" For Use with Cam Lift Hinges
  •  "HC" Hold Closed
  •  "LL" Lead-Lined
  •  "LS" Less Spring
  •  "NON-FERROUS SCREW" - Non-ferrous fasteners provided in lieu of standard fasteners
  •  "SEC" Fasteners
  •  "T" Threaded Pivot Screw & Nylon Washer in Lieu of Jamb Bracket
  •  "THICK" Special Door Thickness
  •  Special - Contact ABH if the dimension, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required
