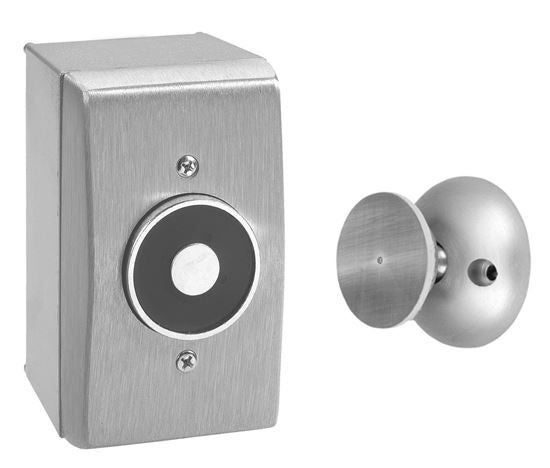

ABH 2300 Surface Magnetic Door Holder

ABH 2300 Surface Magnetic Door Holder

by ABH
From
$104.93

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure

Description

This door electromagnetic door holder with timer, is designed to temporarily hold doors open for storage rooms, areas with heavy cart traffic or to facilitate the movement of wheelchairs or beds. With a total projection of 4-5/8" from the wall to the door face (expandable to 5-5/8" with the included 1" extension), our system offers versatile installation options. Equipped with a 35 lb. holding force and crafted entirely from metal components, our door holder ensures robust durability and safety, meeting UL/ULC standards for smoke barrier or fire doors as certified by the California State Fire Marshal.

Specifications

  • Built in timer, preset to hold doors open for 3 minutes from the time of activation
  • Activation is achieved by depressing the built-in activaion push button
  • Provided with one complimentary 1" extension - No charge
  • Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
  • UL/ULC listed for smoke barrior or labeled fire doors
  • Listed by the California State Fire Marshall
  • Outlet box provided
  • Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
  • Positive release button alleviates residual magnetism
Product Catalogue: ⬇️ Download

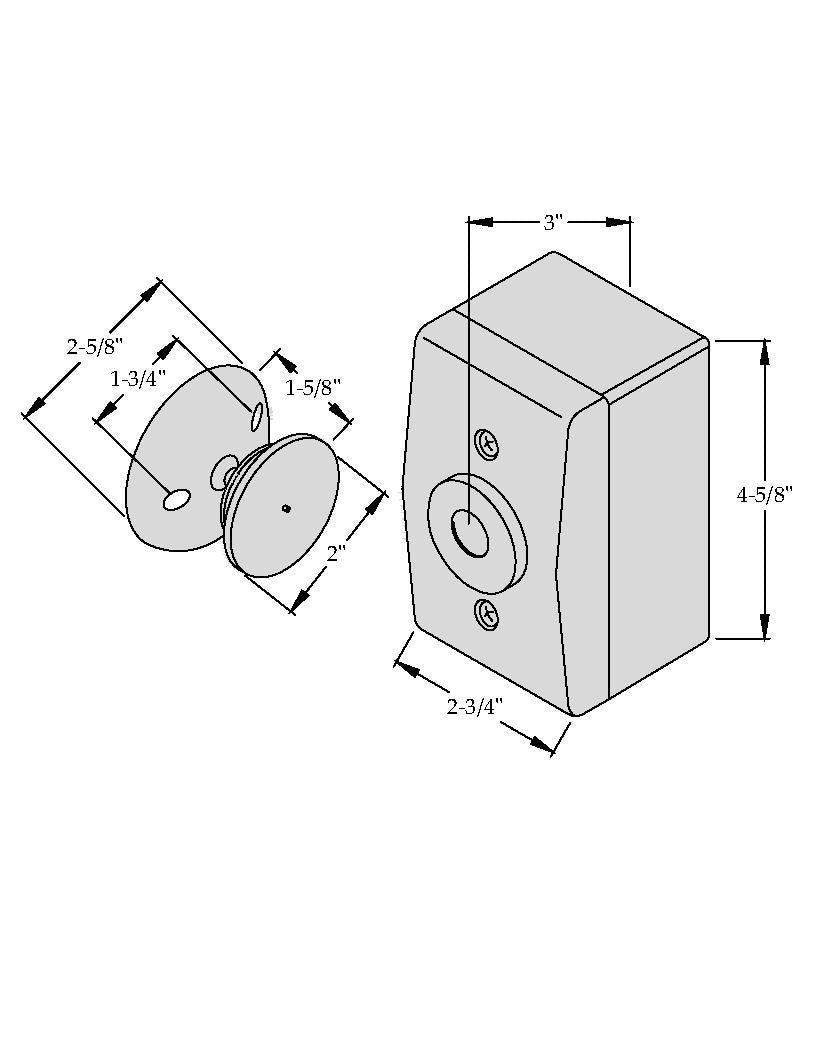

Projection from wall to face of door: 4-5/8" total projection from wall to face of door (5-5/8" if using complimentary 1" extension)
Holding Force: 35 lbs
Voltage: Tri-voltage units: 12V DC, 24V AC/DC OR 120V AC
Weight per Unit: 3.5 lb
Material: All metal components (no plastic)
Installation Guide: ⬇️ Download
