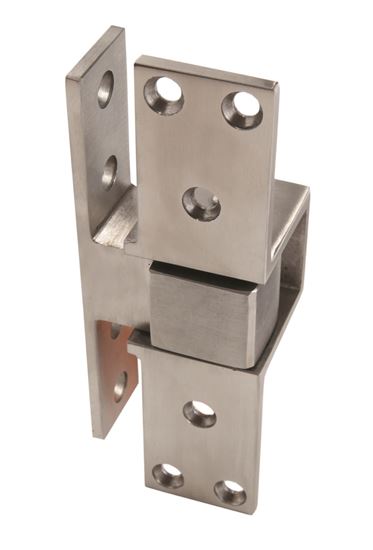

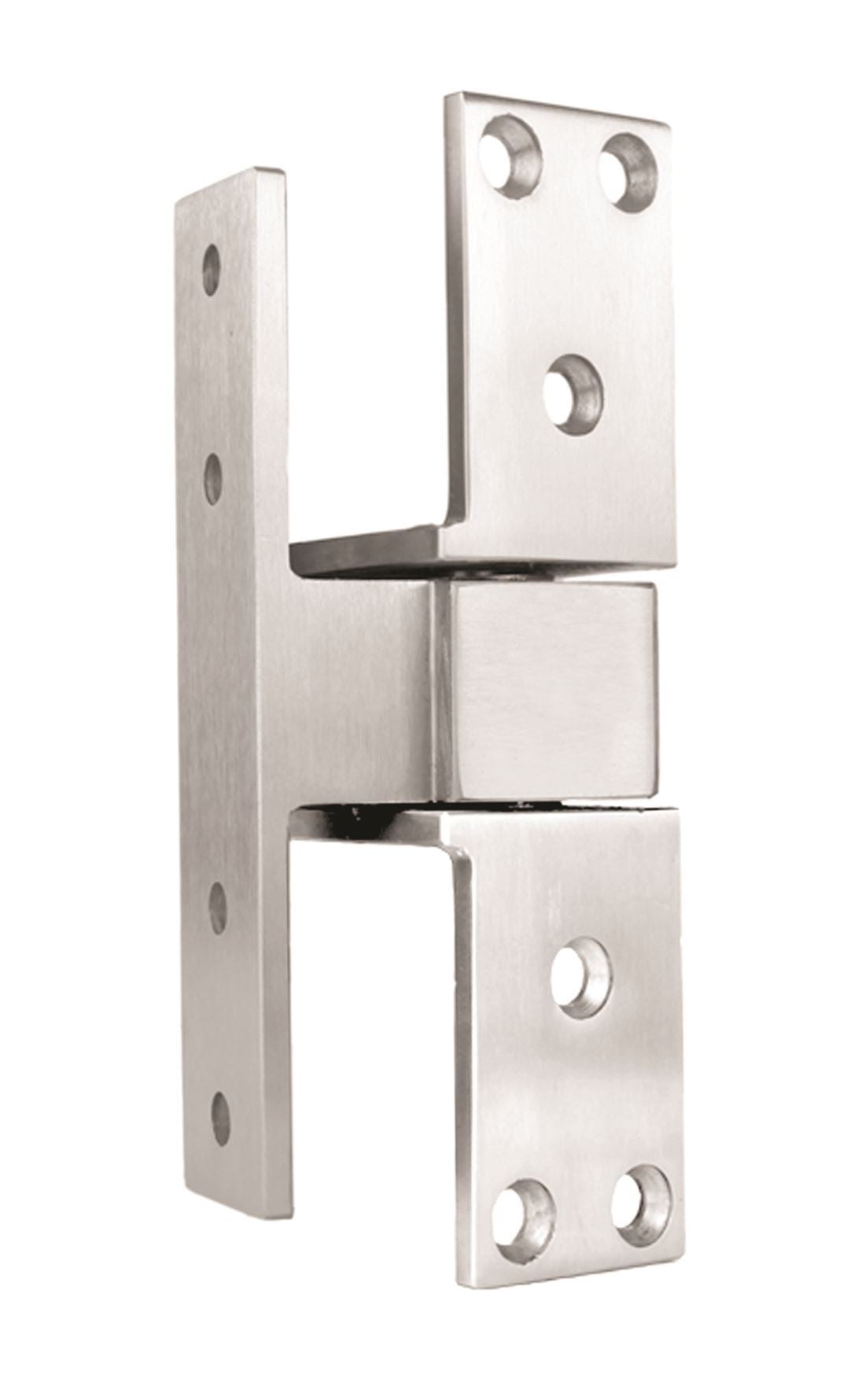

ABH 0519 Pocket Pivot *

ABH 0519 Pocket Pivot *

by ABH
From
$281.29

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure
  • Features:
    • Pivot point is located inside the frame
    • Allows door to swing into a pocket in the frame at a right angle
    • When the door is in the pocket, it is completely clear of the door opening and flush with adjacent wall
    • Maximum door swing is 90°
    • Minimum three pocke tpivots per door 60" - 90" tall
    • Add one pocket pivot for each additional 30" door height
    • Maximum door load per pivot - 90 pounds
    • Non-handed
    • UL listed for use on 3-hour fire rated doors - Standard
    • Heavy duty stainless steel needle bearings
    • Stainless steel base material
    • Average weight per unit = 2.5 lbs
