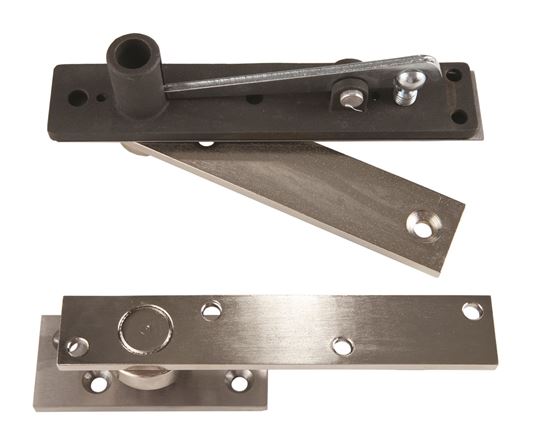

ABH 0370 Center Hung Pivot w/ 0340 Top Pivot

ABH 0370 Center Hung Pivot w/ 0340 Top Pivot

by ABH
From
$125.95

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure
  • Features:
    • Non-Handed
    • Pivot set is centered into the door thickness
    • Maximum door load 500 lbs.
    • Maximum door size - 42" x 102"
    • Average weight per unit = 3.5 lbs

  • Includes:
    • 0340 Top Pivot
      • Frame leaf mortises into header
      • Door leaf mortises into top of door
    • 0370 Bottom Pivot
      • Bottom leaf mounts on top of finished floor
      • Door leaf mortises into bottom of door
Options:
  •  "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  •  "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  •  "SEC" Fasteners
