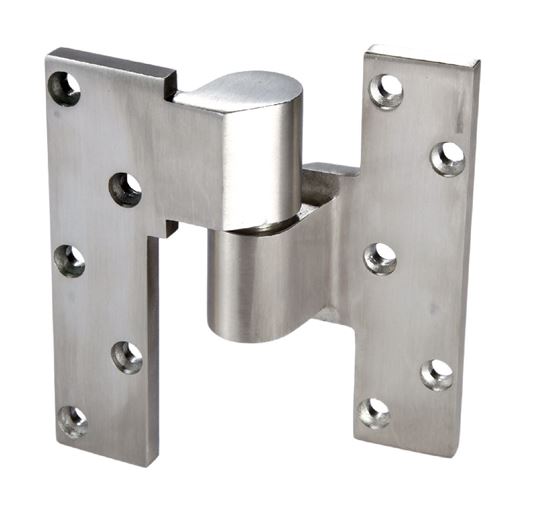

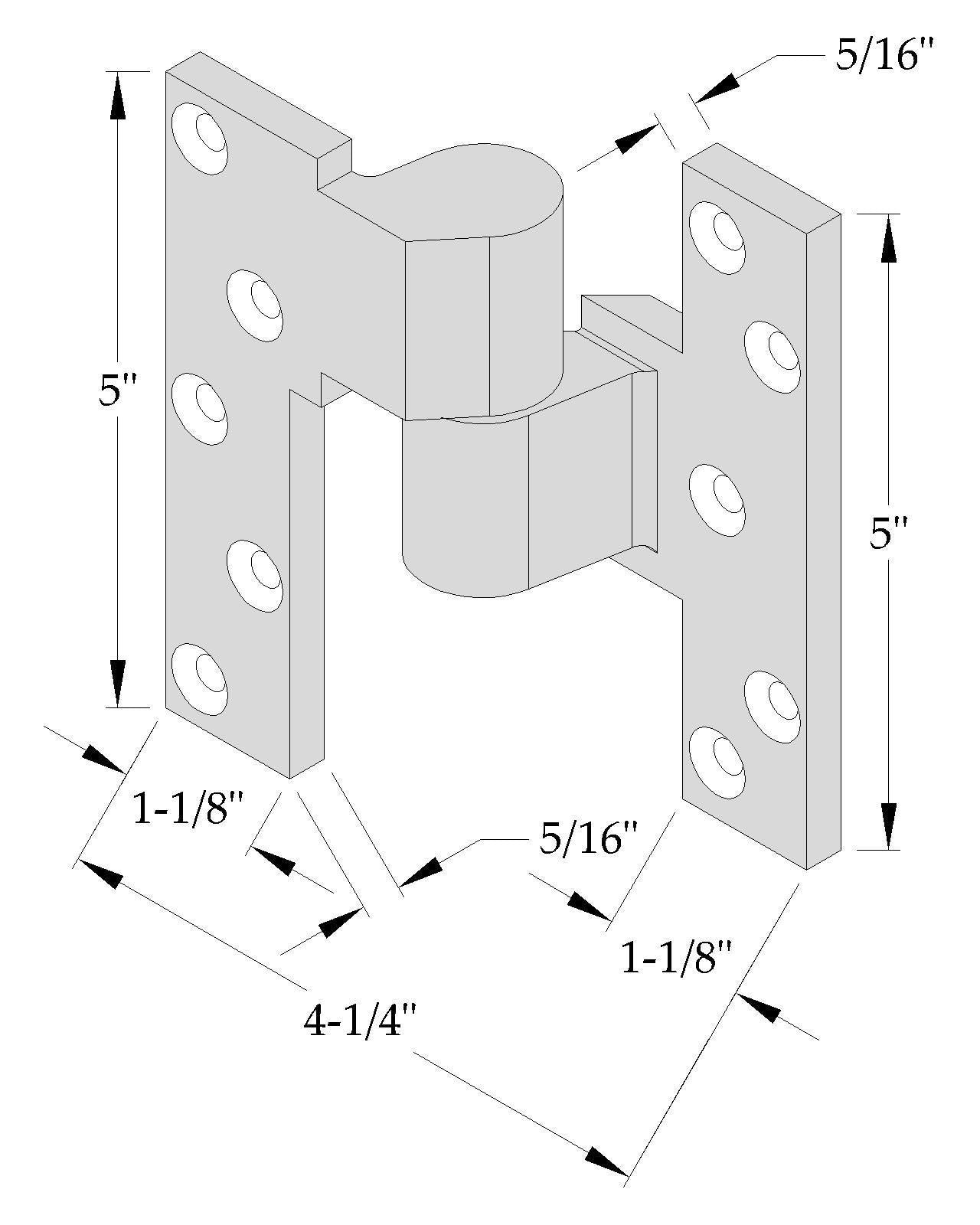

ABH 019 Pivot Intermediate

by ABH

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure
  • Features:
    • Doors ranging from 60" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height. (ie, 90" tall door should use two intermediate pivots)
    • Mortises into side jamb and hinge edge of door
    • Handed - Specify LH or RH
    • For use with  with 3/4" offset pivot sets
    • Helps maintain door alignment
    • UL Listed for use on 3-hour fire rated doors - Standard
    • Heavy duty stainless steel needle bearings
    • Stainless steel base material
    • Average weight per unit = 2.5 lbs
