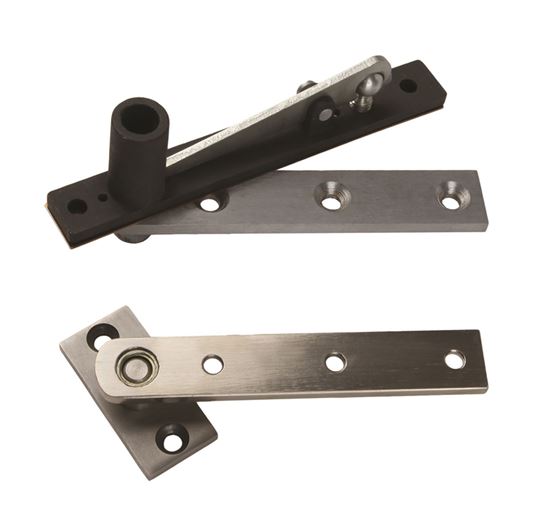

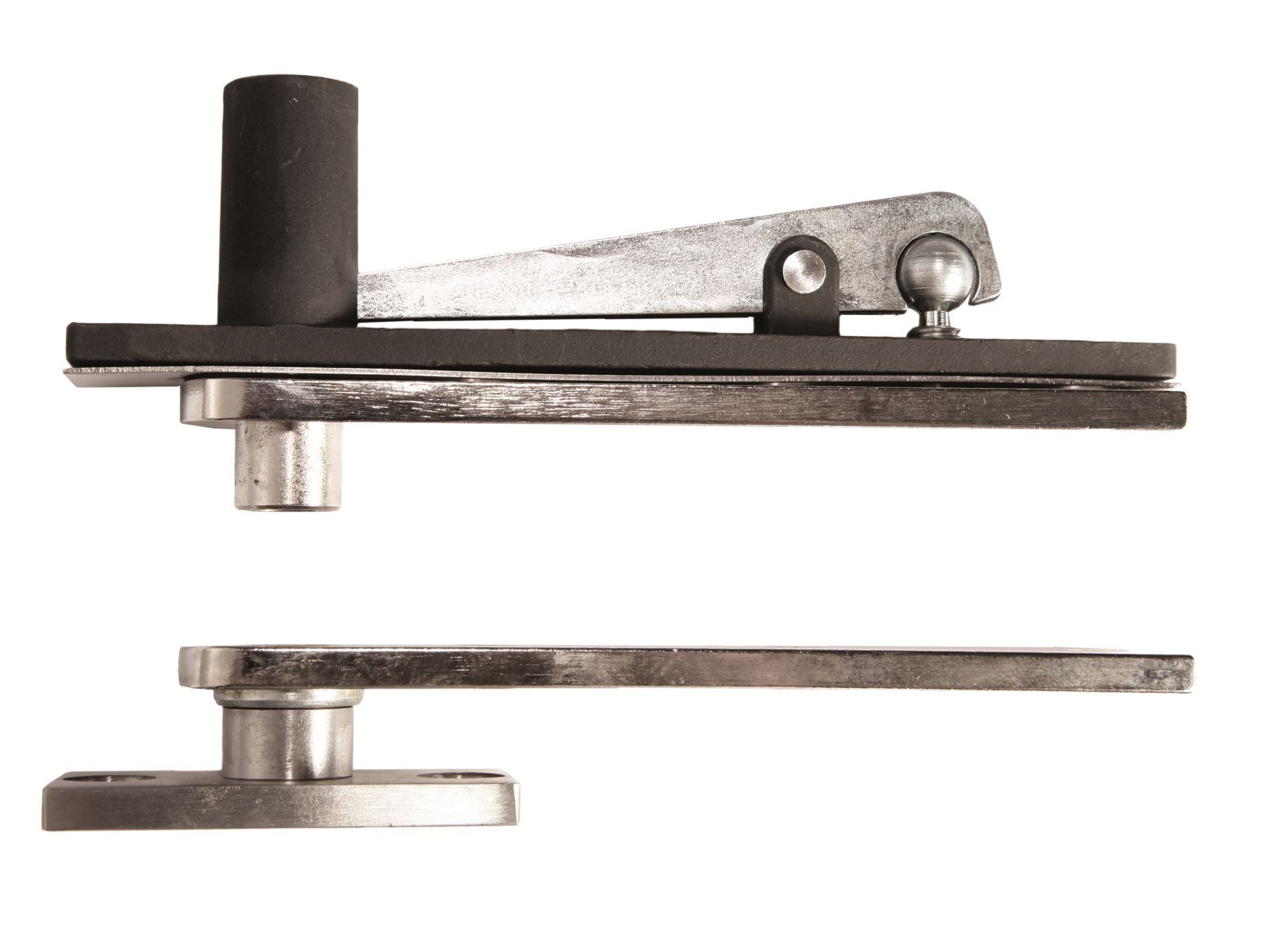

ABH 0128 Center Hung Pivot w/ 0320 Top Pivot

ABH 0128 Center Hung Pivot w/ 0320 Top Pivot

by ABH
From
$73.95

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure

Description

Includes:
  • 0320 Top Pivot
    • Frame leaf mortises into header
    • Door leaf mortises into top of door
  • 0128 Bottom Pivot
    • Bottom leaf mortises on top of finished floor
    • Door leaf mortises into bottom of door
    Options:
    •  "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
    •  "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
    •  "SEC" Fasteners

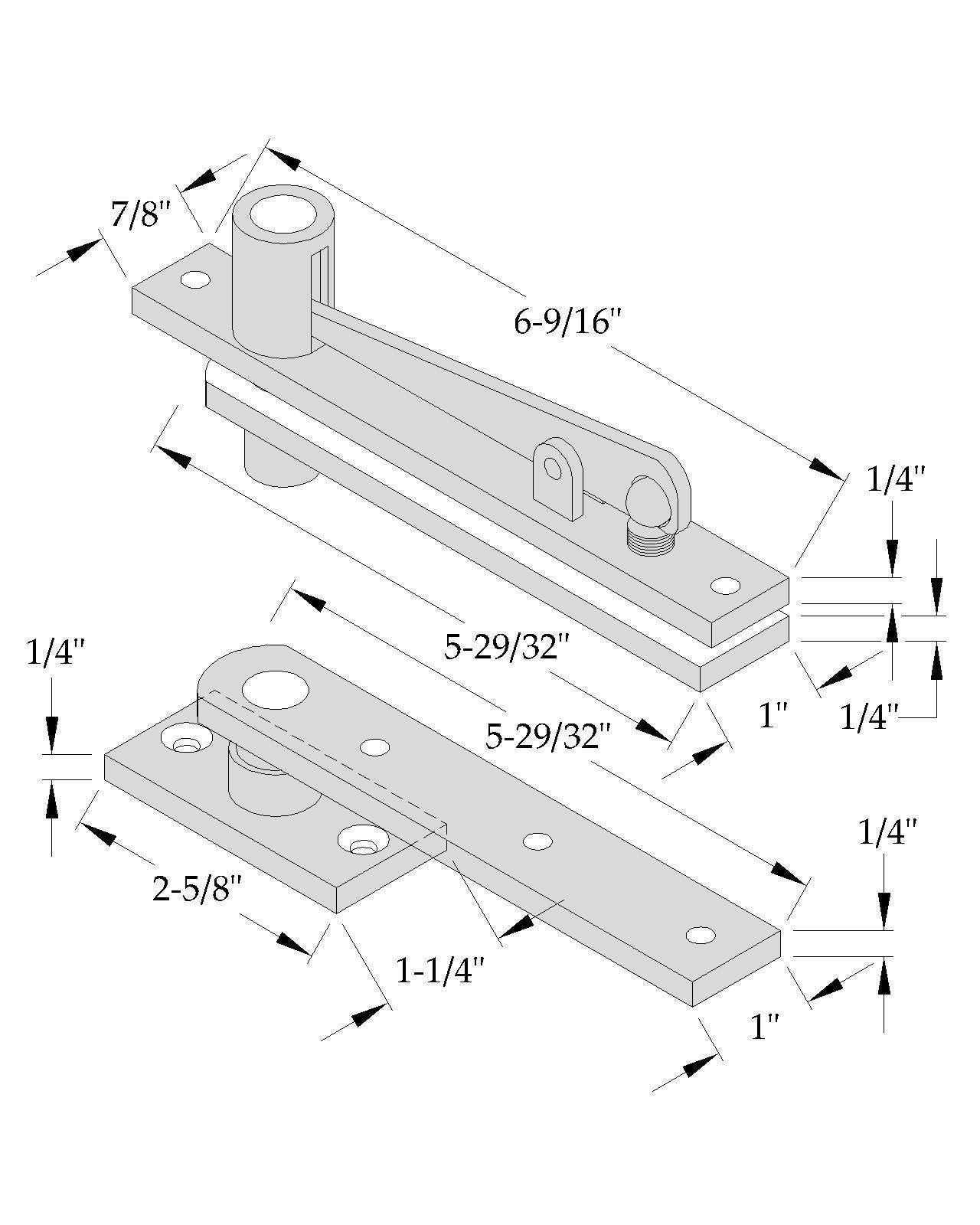

    Specifications

    • Non-handed
    • Pivot set is centered into the door thickness
    • Maximum door load - 250 pounds
    • Maximum door size - 42" x 102"
    • Average weight per unit = 2.5 lbs
