ABH 0117 3/4" Offset Pivot Set w/ 0180 Top Pivot

by ABH

Notify me when back in stock

Shop with Confidence

Shop with Confidence

30 Day Easy Returns
5 Star Service

5 Star Service

Read Our Reviews
Safe Payments

Safe Payments

100% Secure

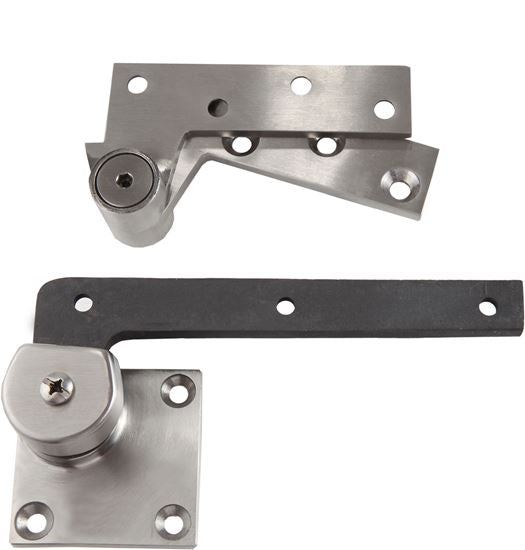

This set includes:

  • 0180 Top Pivot
    • Frame leaf mortises into header
    • Door leaf mortises into top of door
  • 0117B Bottom Pivot
    • Bottom leaf mortises into floor
    • Door leaf mortises into botton of door

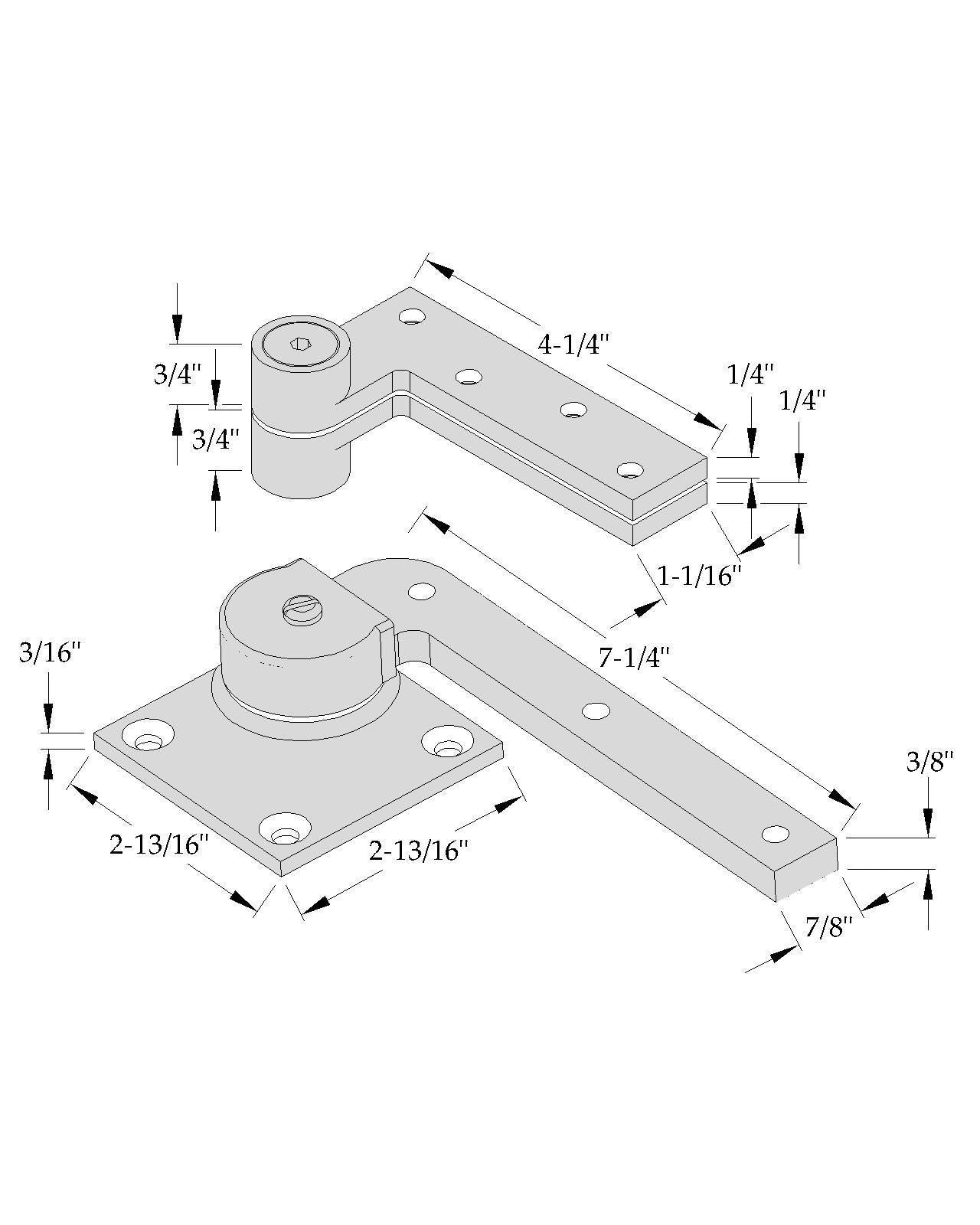

These pivots feature a point located 3/4" from the heel edge of the door. Positioned in front of the door, the pivot point exposes its knuckle. It comes with a standard offset of either 3/4" or 1-1/2". The larger 1-1/2" offset is ideal for specific applications such as decorative panels on the push side of the door or trim projections that restrict the door from opening fully to 180 degrees. Offset pivots are designed for single-acting doors and are typically installed on rabbeted frames.


  • 019 intermediate pivot recommended (order separately)
  • UL listed for use on 3-hour fire rated doors - Standard
  • Heavy duty bearings
  • Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.
Handed: LH or RH (Specify)
Maximum Door Load: 300 pounds
Maximum Door Width:  42"
Material Stainless steel base material
Installation Guide:  ⬇️ Download
